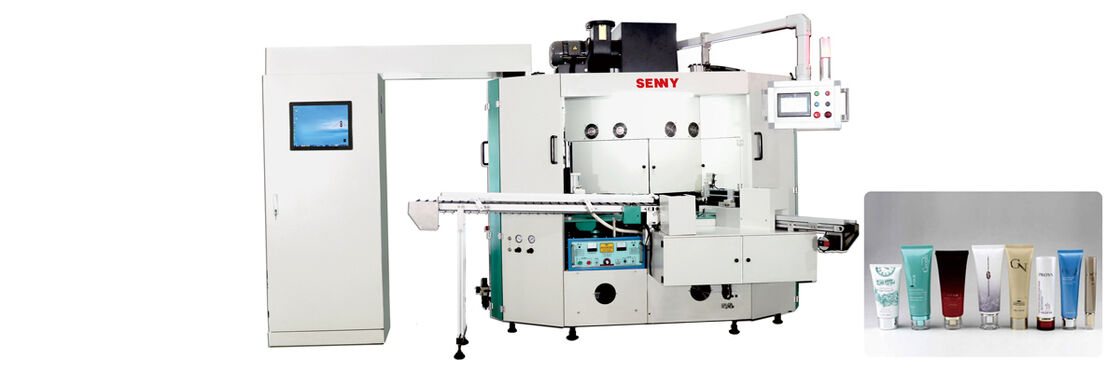

1-8 Color Soft Tube Automatic UV Printing Machine Up to 80pcs/min With Varnishing

Machine Features

The machine is suitable for screen printing of various colors of UV ink, hot stamping, varnishing and other decorations onplastic soft tubes
The machine adopts an integrated turntable design, all printing functions are completed in the same set of fixture, the printingaccuracy is as high as +0.1mm.
The machine is driven by digital control servo motor to realize 360-degree printing of products, equipped with remotemanagement and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-use touch screen and wirelesstablet operation, with reliable performance.

Optional Configuration
Unscrambling & feeding machine.

Hot stamping function.

Plasma surface treatment function.
Visual registration function.

LED-UV curing function.

Finished product quality inspection function.

Technical Parameters
MachineModel                                SRS466                        SRS666                        SRS866

Printing  Color                                      1-4                            1-6                                    1-8
Printing Speed                                Up to 80pcs/min         Up to 80pcs/min          Up to 80pcs/min
Soft Tube Diameter                          13-80mm                     13-80mm                      13-80mm
Soft Tube Height                               25-250mm                   25-250mm                 25-250mm
Max Printing Length                         250mm                           250mm                       250mm

Max Printing Height                         220mm                            220mm                      220mm

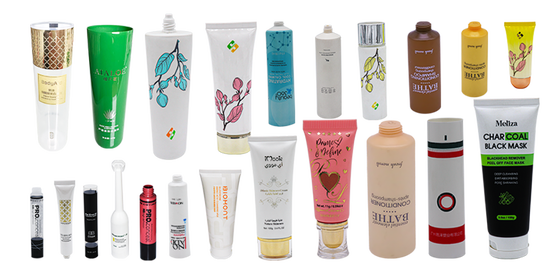

Printing Sample
