380V 20kw 3 Color Screen Printing Machine Fully Automatic
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | SENNY |
| گواهی: | CE SGS |
| شماره مدل: | SL700 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 پی سی |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته تخته سه لا |
| زمان تحویل: | یک یک ماه |
| شرایط پرداخت: | TT یا LC |
| قابلیت ارائه: | 10 قطعه در ماه |
|
اطلاعات تکمیلی |
توضیحات محصول

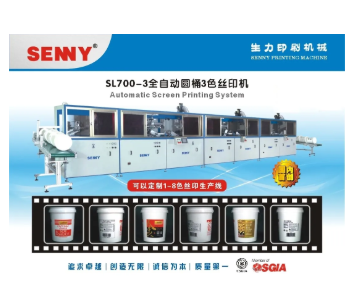

1-3 Color Fully Automatic Screen Printing Machine With Independent PLC Program And Touch Panel Control System
Technical Specifications:
| Model | SL700 |
| Cylindrical container diameter | Φ150-Φ350mm |
| Cylindrical container height | 200-400mm |
| Power voltage | 380V 50Hz |
| Air Pressure | 5-7kg/cm2 |
| Max. screen frame size | 1200 X 400mm |
| Power consumption | 20KW |
| Machine weight | 2500kg |
| Max. printing speed | 5000pcs/hr |
| Dimension | L12000XW2500XH1800mm |
Application:
This printing system SL700-3 is for rounded(cylindrical) plastic buckets only, the volume can be 5-30L; it is widely used in chemical and food package. We can accept customized machine according to your requirements, the max color can be 12.
Features:
1. Auto-speed adjustable conveyor and direction-fixation system.
2. Auto continuous flame treatment system.
3. Pre-fixation function for cylindrical bottles and double direction shut-and-open printing system can monitor no printing without object function.
4. The device for changing cylindrical bottles from elliptical bottles.
5. Curing system with Americal UV lamp.
6. 2 meters check-convoy for the finished objects.
7. Independent PLC program control system and touch panel control system.
8. The machine works steady because using name-brand electric parts.
Screen printing device
Blanking device
Printing samples
