1-8 Color Servo-Driven UV Linear Printing Machine For Plastic Bottle 70 Pcs/Min
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | SENNY |
| گواهی: | CE SGS |
| شماره مدل: | SLS1888 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته تخته سه لا |
| زمان تحویل: | 45 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | 10 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| مدل ماشین: | SLS1888 | رنگ چاپی: | 1-8 رنگ |
|---|---|---|---|
| مارک: | سانی | خدمات پس از فروش: | ویدئو یا آنلاین |
| موتور: | موتوری | جزئیات بسته بندی: | پکیج تخته سه لا |
توضیحات محصول

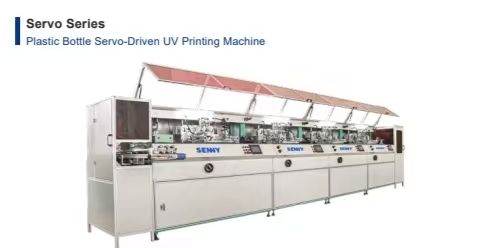

1-8 Color Servo-Driven UV Printing Machine For Plastic Bottle 70 Pcs/Min
Machine Feature
- This machine is suitable for UV ink screen printing (multiple colors), hot stamping, labeling and other decorative processes on plastic bottles of different shapes (circular, elliptical, square, etc.).
- It uses a digitally controlled servo motor for printing, enabling easy 360° printing, and comes with remote management and service capabilities (Industry 4.0).
- Equipped with electrical components from well-known brands, the machine features a touchscreen and PLC control system for easy operation and reliable performance.
- It adopts a highly customizable modular design, which can be connected in a linear manner to form a 1-8 color printing machine.
- The standard configuration includes a screen printing and UV curing module. It can also be optionally upgraded to a multifunctional printer, where hot stamping or labeling functions can replace the screen printing function.
- Additionally, the machine can be connected to independent modules such as hot stamping, labeling, and quality inspection to form a multifunctional printing system.
Optional Configuration
- Plasma surface treatment function.
- Hot stamping function.
- Labeling function.
- LED-UV curing function.
Technical Parameters
| Machine Model | SLS1888 |
| Printing Speed | Up to 70 pcs/min |
| Diameter at 360 degree | 20-170mm |
| Bottle Height | 50-300mm |
| Max.Printing Length | 300mm |
| Max.Printing Height | 250mm |

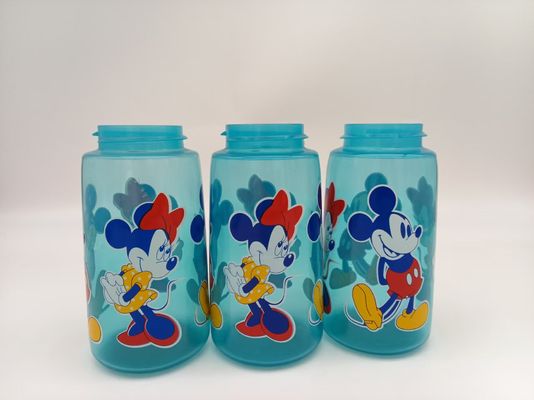

Printing Sample
About us:
Senny serves food, medicine, toys, cosmetics, daily chemicals, electronics, decorative products and other industries. Through the use of automatic printing technologies, such as screen printing, pad printing, hot stamping, labeling, offset printing and digital printing, it realizes printing high-quality exquisite graphics & texts on the surface of various shapes of products such as plastic, metal, glass
and ceramics.
Since 1994, Senny has always adhered to the business philosophy of providing customers with high-quality products and services, exploiting the most advanced electrical control components and materials for R&D and manufacturing, and continuously improving the printing quality on various products to meet the increasingly extensive market requirements for high-quality packaging.
