360-Degree Product Printing With Digitally Controlled Servo Motors On CNC Tube Screen Printing Machine
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Senny |
| گواهی: | CE SGS |
| شماره مدل: | SRS1039-2C1H |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته بندی فیلم |
| زمان تحویل: | یک یک ماه |
| شرایط پرداخت: | T/T ، L/C |
| قابلیت ارائه: | 15 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| درجه اتوماتیک: | کاملاً اتوماتیک | وضعیت: | جدید |
|---|---|---|---|
| دوام چاپی: | دوام | سیستم کنترل: | کنترل سرویس و حرکات |
| سرعت چاپ: | 80 عدد در ساعت | رنگ های چاپی: | 1-6 رنگ |
| جزئیات بسته بندی: | بسته تخته سه لا | ضمانت: | 1 سال |
| گواهی: | CE SGS | شرایط پرداخت: | t/t |
| سرویس پس از فروش: | ویدئو یا آنلاین | قابلیت ارائه: | 5 عدد در ماه |
| برجسته کردن: | 360-degree CNC tube screen printing machine,digitally controlled servo motor screen printer,CNC tube printing machine with warranty,digitally controlled servo motor screen printer,CNC tube printing machine with warranty |
||
توضیحات محصول

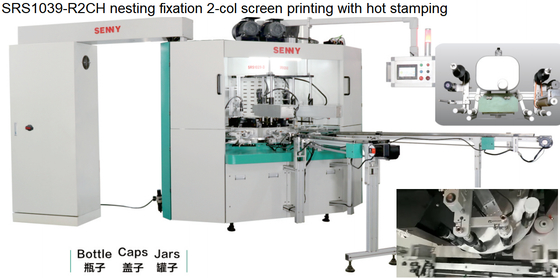

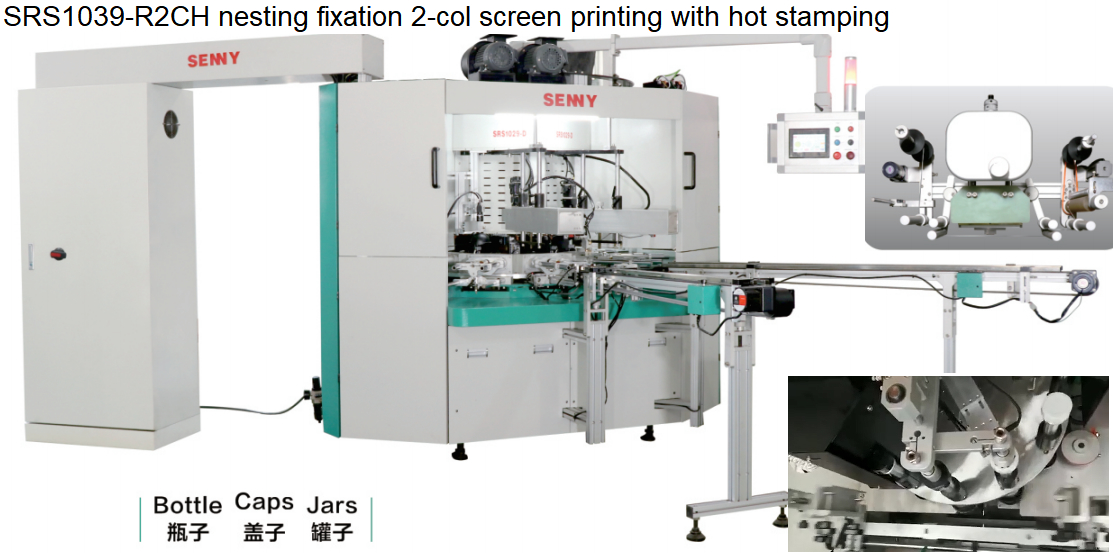

360-Degree Product Printing With Digitally Controlled Servo Motors On CNC Tube Screen Printing Machine
Introduction:
Senny offers a rich portfolio of printing models tailored to plastic soft tube processing, leveraging advanced automatic printing technologies—including varnishing, screen printing, and hot stamping—to deliver vivid, high-precision graphics and multi-color text. Whether for brand logos, product information, or decorative patterns, these technologies ensure sharp details, consistent color rendering, and excellent adhesion to plastic surfaces, elevating the visual appeal and market competitiveness of the finished tubes.
Machine Features:
- The machine is suitable for screen printing various colors of UV inks, hot stamping, varnishing and other decorations on plastic tubes.
- The machine has an integrated carousel design with all printing functions on the same set of fixtures and printing accuracy of ±0.1 mm.
- The machine is driven by digitally controlled servo motors for 360-degree product printing and is equipped with remote management and service functions (Industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system, touch screen and wireless tablet operation is easy to use and reliable performance.
Optional Configuration:
-
Unscrambling & feeding machine.
-
Plasma surface treatment function.
-
Varnishing function.
-
Hot stamping function.
-
LED-UV curing function.
-
Finished product quality inspection function.
Parameters
| Machine Model | SRS826 | SRS1036 | SRS1246 | SRS1666 |
| Work Station | 8 | 10 | 12 | 16 |
| Printing Speed | Up to 80pcs/hour | Up to 80pcs/hour | Up to 80pcs/hour | Up to 80pcs/hour |
| Tube Diameter | 16–75mm | 16-75mm | 16-75mm | 16-75mm |
| Tube Height | 60–220mm | 60–220mm | 60–220mm | 60–220mm |
| Printing Length | 220mm | 220mm | 220mm | 220mm |
| Printing Height | 180mm | 180mm | 180mm | 180mm |
| Printing Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Applications:
The SRS1039-2C1H Automatic UV Screen Printing Machine is a fully automatic UV screen printing machine. Its printing scope covers common container workpieces, and it can be used for UV screen printing of various cylindrical or irregular container bodies such as bottles, lids, and cans.

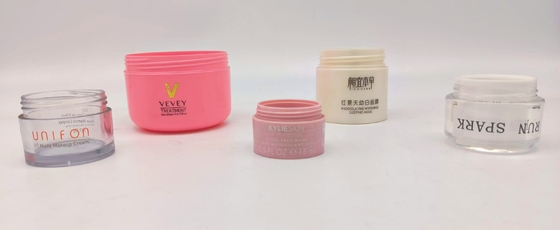

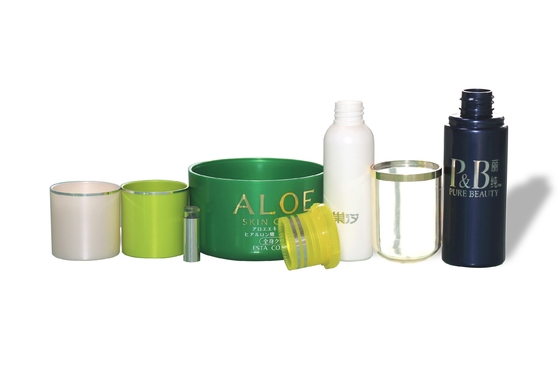

Printing sample
About us:
Senny located in Changping town, Dongguan city, near Shenzhen and Guangzhou. There are shuttle fast train from Shenzhen/Guangzhou/Guangzhou East railway staion to Changping railway station, it takes about 40-50 mins.
