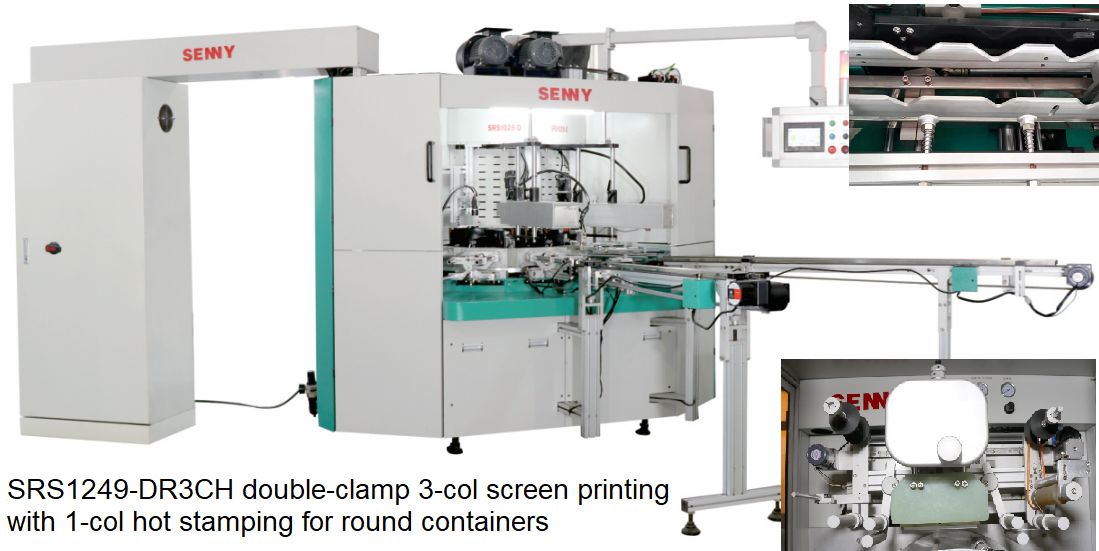

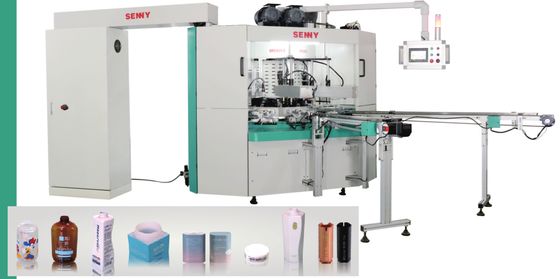

4-Color 45pcs/Min CNC Automatic Screen Printing Machine For Tube And Bottle
جزئیات محصول:
| محل منبع: | دونگوان چین |
| نام تجاری: | SENNY |
| گواهی: | CE SGS |
| شماره مدل: | SRS1249 |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 قطعه |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته تخته سه لا |
| زمان تحویل: | 45 روز |
| شرایط پرداخت: | t/t |
| قابلیت ارائه: | 10 قطعه در ماه |
|
اطلاعات تکمیلی |
|||
| درجه اتومبیل: | کاملاً اتوماتیک | نوع صفحه: | چاپگر صفحه نمایش |
|---|---|---|---|
| خدمات پس از فروش: | ویدئو یا آنلاین | رنگ چاپی: | 4 |
| برجسته کردن: | مزایا: می تواند در چهار رنگ چاپ شود و محصولاتی را با اشکال متنوع مانند شکل های دایره ای ، مثلثی ، بی | ||
| برجسته کردن: | 4-color automatic screen printing machine,CNC screen printing machine for tubes,45pcs/min bottle screen printing machine,CNC screen printing machine for tubes,45pcs/min bottle screen printing machine |
||
توضیحات محصول
Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
- A function for loading and unloading products in a horizontal position.
- A function for examining the quality of finished products.
- A function for visual alignment of bottle bodies.
- An LED-UV curing system.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1249 |
| Printing Color | 4 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-600mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
